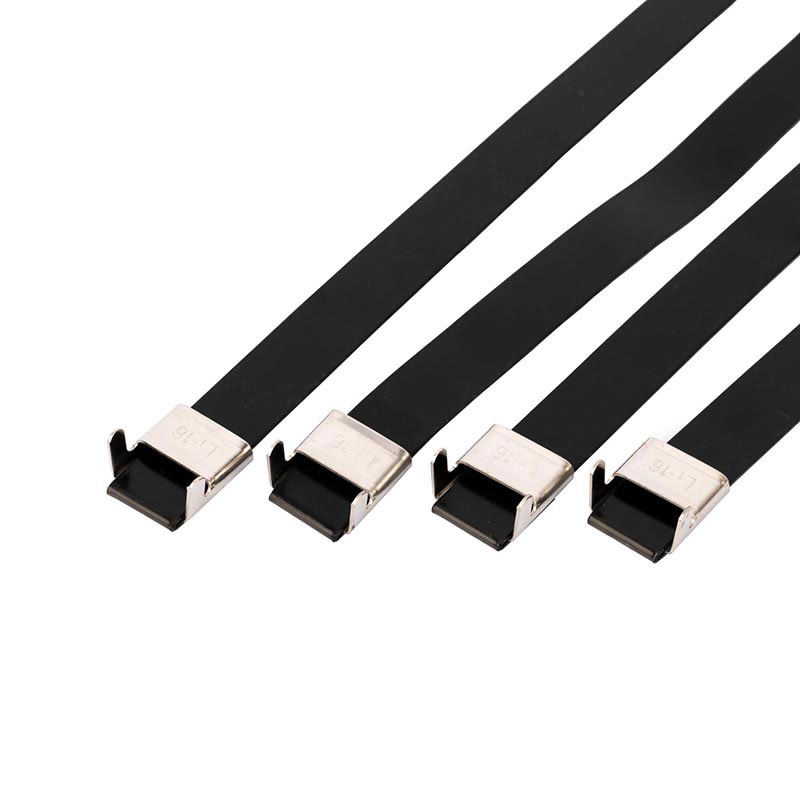

Wing Seal PVC Coated Cable Ties
● PVC Coated Wing Lock Stainless Steel Cable Ties
● Wing lock design for heavy duty installation
● Smooth edges for safe handing.
● Suitable for all types of cable insulation
● 304/316 Stainless steel
- Product Details
Short Description:
● PVC Coated Wing Lock Stainless Steel Cable Ties
● Wing lock design for heavy duty installation
● Smooth edges for safe handing.
● Suitable for all types of cable insulation
● 304/316 Stainless steel
● Ideal for applications where corrosion, vibration, radiation or extremes of temperature are a concern.
● Fire proof, UV resistant and halogen free.
● Temperature range: -80℃ to +500℃
● This series item has been approved with UL, DNV, ABS, UKCA, CE certificates.
PVC Coated Wing Lock Stainless Steel Cable Ties
At present, the common stainless steel tie in the market is a kind of stainless steel product mainly used for industrial binding and fixation. Because it is made of stainless steel, it has the corrosion resistance of stainless steel to chemical corrosion media (acid, alkali, salt and other chemical etching).
At the same time, the stainless steel strap product is not limited by the shape and size of the bound object. The simple buckle structure simplifies the complexity of the traditional hoop, and the good fastening performance ensures the safety of the bound object. The stainless steel strap is made of anti-corrosion and high temperature resistant materials to ensure the beauty of the environment and fire protection requirements. Of course, its fixation is very reliable.
Stainless steel straps and buckles are made of high-quality stainless steel, which are widely used in various fields with their binding strength. Strong and practical carton packaging, the existing simple plastic waterproof packaging, the new portable box has convenient handles and transparent design, which can display the remaining ties, which can be pulled out as needed. The smooth r fillet edge of the binding belt is safe and easy to install. It can also be tied in double layers to increase the load capacity. It is more suitable for corrosion-resistant, humid, seawater and other harsh environments. Can process any specification.
Data Sheet
|
Type |
Size (mm) |
Dimensions (mm) |
Materials |
Max Bundle Diameter (mm) |
Minimum Loop Tensile Strength (N) |
||
|
Length |
Width |
Thickness |
|||||
|
BZ-LP |
7.9x200 |
200 |
7.9 |
0.25 |
304/316 |
50 |
2200 |
|
BZ-LP |
7.9x300 |
300 |
7.9 |
0.25 |
304/316 |
76 |
2200 |
|
BZ-LP |
7.9x360 |
360 |
7.9 |
0.25 |
304/316 |
92 |
2200 |
|
BZ-LP |
7.9x450 |
450 |
7.9 |
0.25 |
304/316 |
115 |
2200 |
|
BZ-LP |
7.9x520 |
520 |
7.9 |
0.25 |
304/316 |
138 |
2200 |
|
BZ-LP |
7.9x680 |
680 |
7.9 |
0.25 |
304/316 |
175 |
2200 |
|
BZ-LP |
7.9x840 |
840 |
7.9 |
0.25 |
304/316 |
195 |
2200 |
|
BZ-LP |
7.9x1050 |
1050 |
7.9 |
0.25 |
304/316 |
206 |
2200 |
|
BZ-LP |
10x300 |
300 |
10 |
0.30 |
304/316 |
76 |
2800 |
|
BZ-LP |
10x350 |
350 |
10 |
0.30 |
304/316 |
89 |
2800 |
|
BZ-LP |
10x400 |
400 |
10 |
0.30 |
304/316 |
102 |
2800 |
|
BZ-LP |
10x500 |
500 |
10 |
0.30 |
304/316 |
128 |
2800 |
|
BZ-LP |
10x600 |
600 |
10 |
0.30 |
304/316 |
154 |
2800 |
|
BZ-LP |
10x800 |
800 |
10 |
0.30 |
304/316 |
193 |
2800 |
|
BZ-LP |
10x1000 |
1000 |
10 |
0.30 |
304/316 |
206 |
2800 |
|
BZ-LP |
12x350 |
350 |
12 |
0.30 |
304/316 |
78 |
3115 |
|
BZ-LP |
12x400 |
400 |
12 |
0.30 |
304/316 |
102 |
3115 |
|
BZ-LP |
12x500 |
500 |
12 |
0.30 |
304/316 |
128 |
3115 |
|
BZ-LP |
12x600 |
600 |
12 |
0.30 |
304/316 |
154 |
3115 |
|
BZ-LP |
12x750 |
750 |
12 |
0.30 |
304/316 |
188 |
3115 |
|
BZ-LP |
12x900 |
900 |
12 |
0.30 |
304/316 |
228 |
3115 |
|
BZ-LP |
12x1100 |
1100 |
12 |
0.30 |
304/316 |
278 |
3115 |
|
BZ-LP |
16x350 |
350 |
16 |
0.30 |
304/316 |
78 |
4100 |
|
BZ-LP |
16x400 |
400 |
16 |
0.30 |
304/316 |
102 |
4100 |
|
BZ-LP |
16x450 |
450 |
16 |
0.30 |
304/316 |
108 |
4100 |
|
BZ-LP |
16x600 |
600 |
16 |
0.30 |
304/316 |
148 |
4100 |
|
BZ-LP |
16x750 |
750 |
16 |
0.30 |
304/316 |
184 |
4100 |
|
BZ-LP |
16x900 |
900 |
16 |
0.30 |
304/316 |
220 |
4100 |
|
BZ-LP |
16x1100 |
1100 |
16 |
0.30 |
304/316 |
272 |
4100 |
Other sizes are available on request.
