A manufacturer of high quality stainless steel cable ties, banding, buckles, wing seal, markers and more.
Uncoated Ball Lock Cable Ties
Uncoated Ball Lock Cable Ties
Uncoated Ball Lock Cable Ties
Uncoated Ball Lock Cable Ties
Uncoated Ball Lock Cable Ties

Uncoated Ball Lock Cable Ties

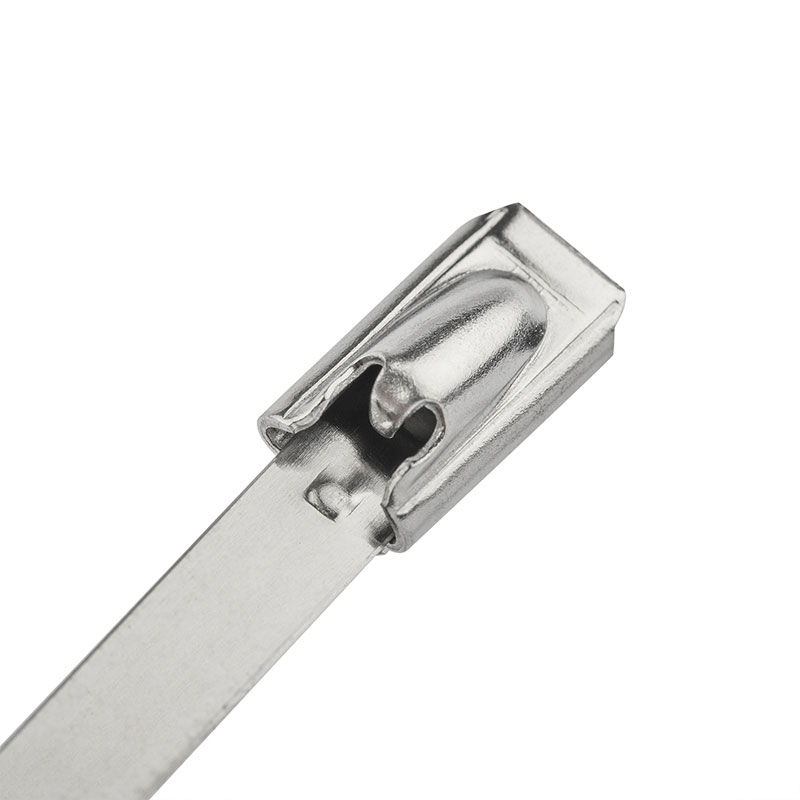

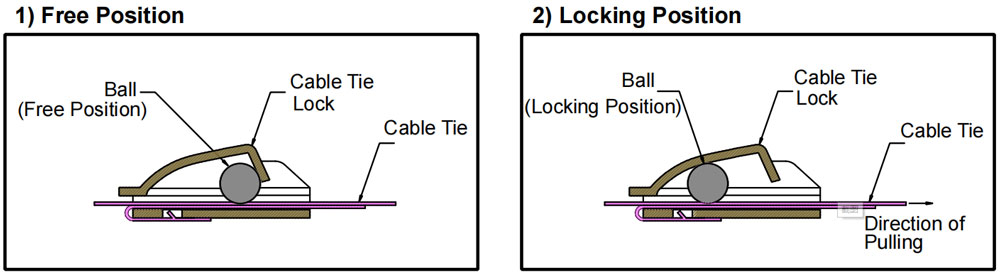

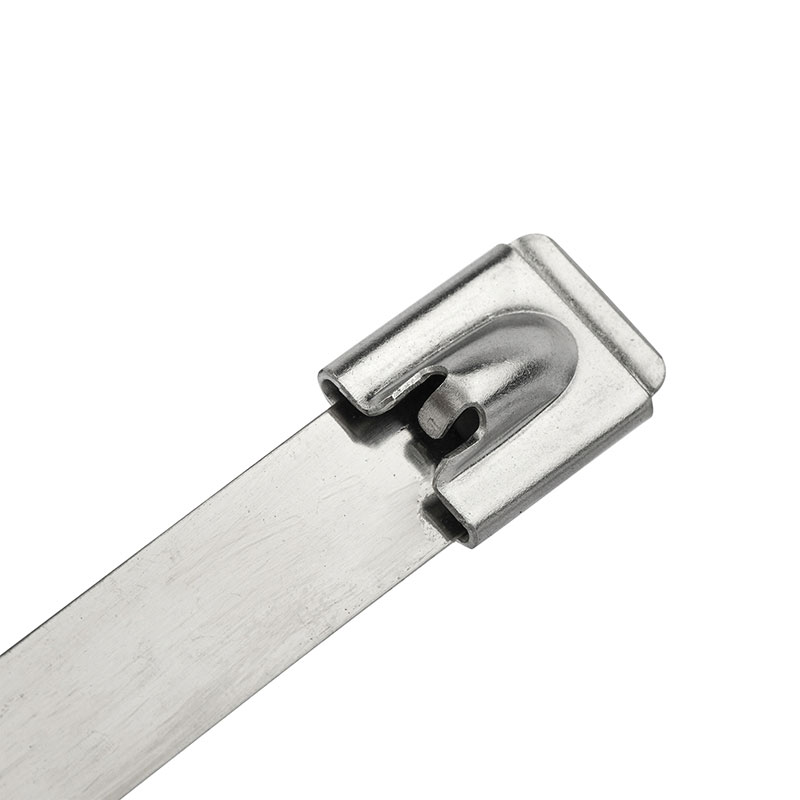

● Roller Ball Lock Stainless Steel Cable Ties

● Self locking design for fast and secure installation

● Fully enclosed head prevents dirt or grit from interfering with locking mechanism.

● Suitable for all types of cable insulation

● Ideal for applications where corrosion, vibration, radiation or extremes of temperature are a concern.



INQUIRE NOW
  • Product Details
Short Description:

● Roller Ball Lock Stainless Steel Cable Ties

● Self locking design for fast and secure installation

● Fully enclosed head prevents dirt or grit from interfering with locking mechanism.

● Smooth edges for safe handing.

● Suitable for all types of cable insulation

● 304/316 Stainless steel

● Ideal for applications where corrosion, vibration, radiation or extremes of temperature are a concern.

● Fire proof, UV resistant and halogen free.

● Temperature range: -80℃ to +500℃

● This series item has been approved with UL, DNV, ABS, UKCA, CE certificates.

Stainless Steel Cable Ties

At present, the common stainless steel tie in the market is a kind of stainless steel product mainly used for industrial binding and fixing. As it is made of stainless steel, it has the corrosion resistance of stainless steel to chemical corrosion media (acid, alkali, salt and other chemical etching).

At the same time, the stainless steel strap product is not limited by the shape and size of the bound object. The simple buckle structure simplifies the complexity of the traditional hoop, and the good fastening performance ensures the safety of the bound object. The stainless steel strap is made from corrosion and high temperature resistant materials to ensure the beauty of the environment and fire safety requirements. Naturally, its attachment is very reliable.

Stainless steel straps and buckles are made of high quality stainless steel, which is widely used in various fields with its binding strength. Strong and practical cardboard packaging, the existing simple waterproof plastic packaging, the new portable box has convenient handles and a transparent design, which can show the remaining ties, which can be pulled out as needed. The smooth, rounded edge of the tie is safe and easy to install. It can also be tied in double layers to increase load capacity. It is more suitable for corrosion resistant, damp, seawater and other harsh environments. Can handle any specification.

Data Sheet

Type

Size (mm)

Dimensions (mm)

Materials

Max Bundle Diameter (mm)

Minimum Loop Tensile Strength (N)

Length

Width

Thickness

BZ-C

4.6x150

150

4.6

0.25

304/316

37

1100

BZ-C

4.6x200

  200

4.6

0.25

304/316

50

1100

BZ-C

4.6x252

  252

4.6

0.25

304/316

64

1100

BZ-C

4.6x300

  300

4.6

0.25

304/316

76

1100

BZ-C

4.6x360

  360

4.6

0.25

304/316

92

1100

BZ-C

4.6x450

  450

4.6

0.25

304/316

115

1100

BZ-C

4.6x520

  520

4.6

0.25

304/316

138

1100

BZ-C

4.6x680

  680

4.6

0.25

304/316

175

1100

BZ-C

7.9x200

200

7.9

0.25

304/316

50

1500

BZ-C

7.9x300

300

7.9

0.25

304/316

76

1500

BZ-C

7.9x360

360

7.9

0.25

304/316

92

1500

BZ-C

7.9x450

450

7.9

0.25

304/316

115

1500

BZ-C

7.9x520

520

7.9

0.25

304/316

138

1500

BZ-C

7.9x680

680

7.9

0.25

304/316

175

1500

BZ-C

7.9x840

840

7.9

0.25

304/316

195

1500

BZ-C

7.9x1050

1050

7.9

0.25

304/316

206

1500

BZ-C

10x300

300

10

0.30

304/316

76

2100

BZ-C

10x350

350

10

0.30

304/316

89

2100

BZ-C

10x400

400

10

0.30

304/316

102

2100

BZ-C

10x500

500

10

0.30

304/316

128

2100

BZ-C

10x600

600

10

0.30

304/316

154

2100

BZ-C

10x800

800

10

0.30

304/316

193

2100

BZ-C

10x1000

1000

10

0.30

304/316

206

2100

BZ-C

12x350

350

12

0.30

304/316

78

3000

BZ-C

12x400

400

12

0.30

304/316

102

3000

BZ-C

12x500

500

12

0.30

304/316

128

3000

BZ-C

12x600

600

12

0.30

304/316

154

3000

BZ-C

12x750

750

12

0.30

304/316

188

3000

BZ-C

12x900

900

12

0.30

304/316

228

3000

BZ-C

12x1100

1100

12

0.30

304/316

278

3000

BZ-C

16x350

350

16

0.30

304/316

78

4000

BZ-C

16x400

400

16

0.30

304/316

102

4000

BZ-C

16x450

450

16

0.30

304/316

108

4000

BZ-C

16x600

600

16

0.30

304/316

148

4000

BZ-C

16x750

750

16

0.30

304/316

184

4000

BZ-C

16x900

900

16

0.30

304/316

220

4000

BZ-C

16x1100

1100

16

0.30

304/316

272

4000

Other sizes are available on request.
