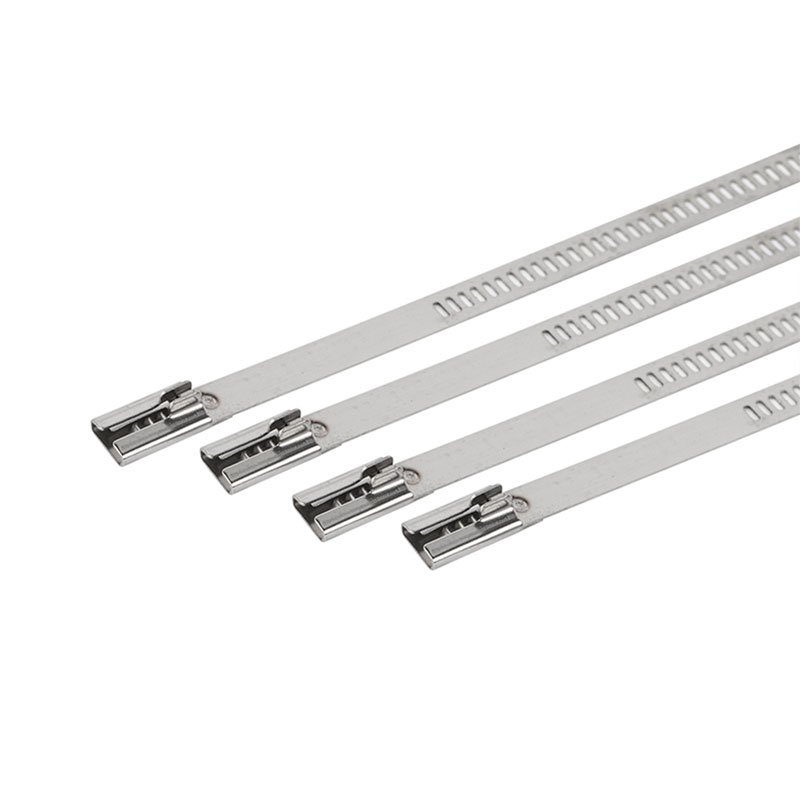

Multi Lock Cable Ties
● Multi-lock Stepped Stainless Steel Cable Ties
● Unique design for multi and secure installation
● Smooth edges for safe handing.
● Suitable for all types of cable insulation
● 304/316 Stainless steel
- Product Details
Short Description:
● Multi-lock Stepped Stainless Steel Cable Ties
● Unique design for multi and secure installation
● Smooth edges for safe handing.
● Suitable for all types of cable insulation
● 304/316 Stainless steel
● application fields: industry, agriculture, communication, petroleum, aviation, transportation, shipping, electric power, hardware, shipbuilding, oil pipeline engineering
● Fire proof, UV resistant and halogen free.
● Temperature range: -80℃ to +500℃
Mult-lock Ladder Type Stainless Steel Cable Ties

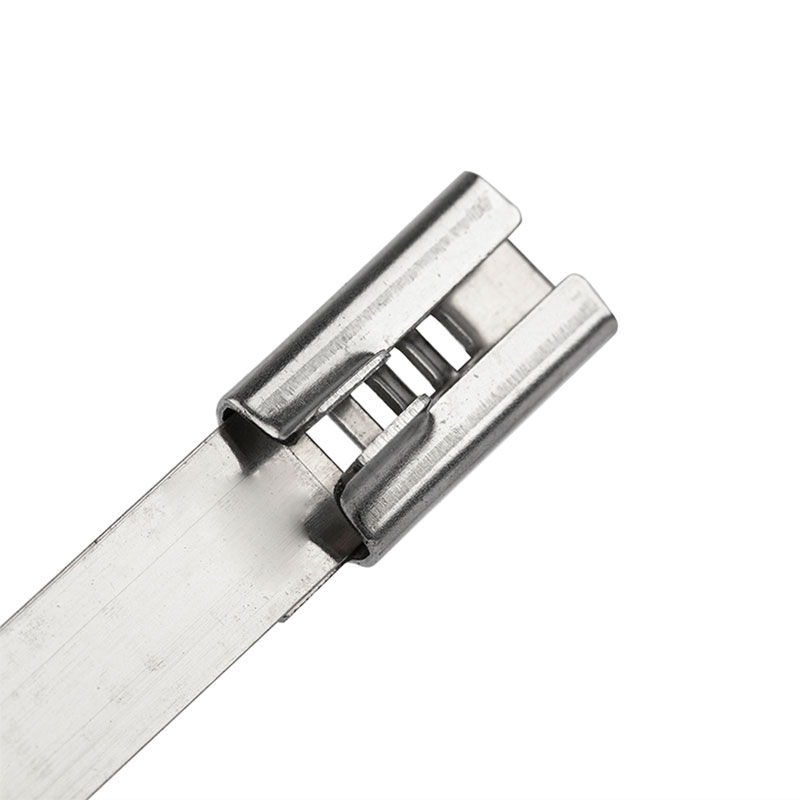

The stepped stainless steel tie belt comprises a belt body and a head, the belt body is provided with a connecting end and a free end, the belt body is provided with a plurality of fixing holes, and the connecting end of the belt body is fixed with the head; The head is provided with a perforation, one end of the perforation away from the belt body is a belt inlet, one side of the head is provided with a curved notch, the two ends of the notch are close to the belt inlet, the area surrounded by the notch is a fixed sheet, the fixed sheet is bent towards the perforation, and the fixed sheet is provided with 2-5 convex strips towards the perforation, The width and length of the convex strip are less than the width and length of the belt fixing hole. With the above structure, when the binding belt binds objects, the convex strip falls into the fixing hole to lock the belt body. The utility model avoids the damage of the ball or metal inclined plate to the belt body and prolongs the service life of the tie. The structure of the head is simple and easy to process.
Data Sheet
|
|
|
|
|
|
|
MLT-7x150 |
150(5.9) |
7(0.276) |
33(1.3) |
1120(252) |
|
MLT-7x225 |
225(8.86) |
57(2.2) |
||
|
MLT-7x300 |
300(11.8) |
81(3.2) |
||
|
MLT-7x335 |
335(13.2) |
92(3.6) |
||
|
MLT-7x400 |
400(15.7) |
113(4.4) |
||
|
MLT-7x450 |
450(17.7) |
129(5.1) |
||
|
MLT-7x490 |
490(19.3) |
141(5.6) |
||
|
MLT-7x550 |
550(21.7) |
161(6.3) |
||
|
MLT-7x600 |
600(23.6) |
176(6.9) |
||
|
MLT-7x650 |
650(25.6) |
192(7.6) |
||
|
MLT-7x700 |
700(27.6) |
208(8.2) |
||
|
MLT-7x750 |
750(29.5) |
224(8.8) |
||
|
MLT-7x800 |
800(31.5) |
240(9.4) |
||
|
MLT-12x150 |
150(5.9) |
12(0.472) |
33(1.3) |
1800(405) |
|
MLT-12x225 |
225(8.86) |
57(2.2) |
||
|
MLT-12x300 |
300(11.8) |
81(3.2) |
||
|
MLT-12x335 |
335(13.2) |
92(3.6) |
||
|
MLT-12x400 |
400(15.7) |
113(4.4) |
||
|
MLT-12x450 |
450(17.7) |
129(5.1) |
||
|
MLT-12x490 |
490(19.3) |
141(5.6) |
||
|
MLT-12x550 |
550(21.7) |
161(6.3) |
||
|
MLT-12x600 |
600(23.6) |
176(6.9) |
||
|
MLT-12x650 |
650(25.6) |
192(7.6) |
||
|
MLT-12x700 |
700(27.6) |
208(8.2) |
||
|
MLT-12x750 |
750(29.5) |
224(8.8) |
||
|
MLT-12x800 |
800(31.5) |
240(9.4) |
Other sizes are available on request.
